binfmt_misc and WSL

calendar Dec 11, 2023 · 4 min read  ·
Share on: linkedin copy

So if you work with wsl on windows, you’ve likely learned that you can execute, from the wsl terminal, windows executables. This is surprising!

If wsl is just a linux kernel running in a virtual machine, how does it know how to deal with windows executables? Also, once it does know, how does it signal to the host operating system that it should handle the file?

Well, there is a mechanism called binfmt_misc that allows you to hook into the OS execve functionality essentially. When the process loader first looks at a file, it at the first several bytes of the file for:

  1. Shebang #!
  2. Elf Magic \x7fELF
  3. Custom Magic.

Custom magic? Well, if you look in /proc/sys/fs/binfmt_misc/ on your linux machine, you’ll see (at least) two files status and register. In a WSL box you’ll also see WSLInterop whose contents are

enabled
interpreter /init
flags: PF
offset 0
magic 4d5a

Where 45da is hex for MZ, ye olde DOS marker of a PE (portable executable) format.

Hey that’s interesting! On my linux machine, I found a number of interesting things in it. Specifically, python .pyc files are supported, and more surprisingly, qemu-arm as well. Looks like my linux x86-64 machine can run arm ‘directly’!

Okay, so that answers the question “How does linux know to do something special when it runs into a MZ file?”. Now, what exactly is that something?

We can clearly see that linux is not just emulating the process via wine, becuase if we spawn a few powershell instances in tmux, we see that these are 100% real windows processes.

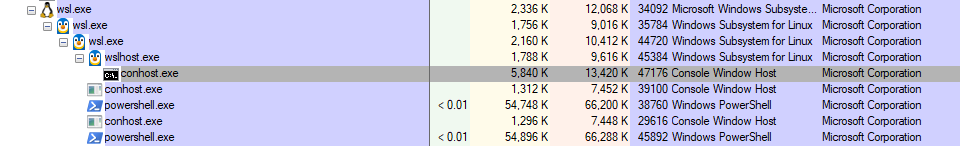

Spawned Procs

Interestingly, the interpreter for MZ is /init, which is the first binary spawned when linux boots. And we can see this from the linux side by running ps:

froeb      923  0.0  0.0   2328  1612 pts/29   S+   17:27   0:00 /init /mnt/c/Windows/System32/WindowsPowerShell/v1.0/powershell.exe powershell.exe

So now we ask a new question: init is just a process (run by a regular user no less!). So how does it talk to windows?

We can imagine a few possibilities:

  1. The WSL linux kernel treats windows as an external device, and writes to special memory accordingly via the regular device driver mechanisms.
  2. Windows is a “networked machine” and WSL communictates to it
  3. Magic Assembly instructions that cause the hypervisor to intervene, presumably doing ring checks. So the process would need to execute a special syscall.

1 seems the most reasonable. 2 seems a tad scary and makes one worry about network reflection attacks.

So, to figure out what init at least is doing, we run strace explorer.exe and see what it’s doing. Is it making magic syscalls? We see that it doing the following:

 socket(AF_VSOCK, SOCK_STREAM|SOCK_CLOEXEC, 0) = 3
bind(3, {sa_family=AF_VSOCK, svm_cid=VMADDR_CID_ANY, svm_port=VMADDR_PORT_ANY, svm_flags=0}, 16) = 0
getsockname(3, {sa_family=AF_VSOCK, svm_cid=VMADDR_CID_ANY, svm_port=0x35d7636, svm_flags=0}, [16]) = 0
listen(3, 4)                            = 0
access("/run/WSL/30948_interop", F_OK)  = 0
socket(AF_UNIX, SOCK_STREAM|SOCK_CLOEXEC, 0) = 4
connect(4, {sa_family=AF_UNIX, sun_path="/run/WSL/30948_interop"}, 110) = 0
write(4, "\7\0\0\0=\1\0\0006v]\3\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\09\0\0\0Q\0\0\0\36\1\0\0\2\0\0\0\226\0\0\0\0\0\0\0\0C:\\Windows\\explorer.exe\0\\\\wsl.localhost\\Ubuntu-18.04\\home\\froeb\\projects\\cwgreene.github.com\0WSLENV=WT_SESSION:WT_PROFILE_ID:\0WT_SESSION=56f6065c-5d5c-4284-9a17-536ab64be312\0WT_PROFILE_ID={c6eaf9f4-32a7-5fdc-b5cf-066e8a4b1e40}\0\0\0explorer.exe"..., 317) = 317
poll([{fd=3, events=POLLIN}], 1, 10000) = 1 ([{fd=3, revents=POLLIN}])
accept4(3, {sa_family=AF_VSOCK, svm_cid=VMADDR_CID_HOST, svm_port=0x360a8b5f, svm_flags=0}, [16], SOCK_CLOEXEC) = 5
poll([{fd=3, events=POLLIN}], 1, 10000) = 1 ([{fd=3, revents=POLLIN}])
accept4(3, {sa_family=AF_VSOCK, svm_cid=VMADDR_CID_HOST, svm_port=0x360a8b60, svm_flags=0}, [16], SOCK_CLOEXEC) = 6
poll([{fd=3, events=POLLIN}], 1, 10000) = 1 ([{fd=3, revents=POLLIN}])
accept4(3, {sa_family=AF_VSOCK, svm_cid=VMADDR_CID_HOST, svm_port=0x360a8b61, svm_flags=0}, [16], SOCK_CLOEXEC) = 7
poll([{fd=3, events=POLLIN}], 1, 10000) = 1 ([{fd=3, revents=POLLIN}])
accept4(3, {sa_family=AF_VSOCK, svm_cid=VMADDR_CID_HOST, svm_port=0x360a8b62, svm_flags=0}, [16], SOCK_CLOEXEC) = 8
close(3)                                = 0

So it’s creating a socket of type AF_VSOCK. Running man vsock reveals:

       The  VSOCK  address family facilitates communication between virtual machines and the host
       they are running on.  This address family is used by guest agents and hypervisor  services
       that  need  a  communications  channel  that  is  independent  of  virtual machine network
       configuration.

Well that seems to answer a good chunk of the question. From the user process (init) perspective, windows is just a unix domain socket that it can read and hear back from. Also, this is a generic linux solution to talking to a host operating system.

So current speculation of how this is working:

  1. Linux kernel has a memory buffer which it uses to communicate with host operating system. This is a completely generic solution and Linux figures this out the same way it would with any other peripheral. It knows nothing about what’s on the other end. Microsoft could have baked in more self-awareness, but very likely chose to make it a user space problem (yay!).
  2. wsl.exe reads and writes to this buffer from the windows side. Going to need to dig into how microsoft’s hyper-v interfaces work.
  3. There exists a protocol between the two.
  4. /init knows the protocol, and that’s the part that microsoft provides.

Alright, that’s good enough for now.
